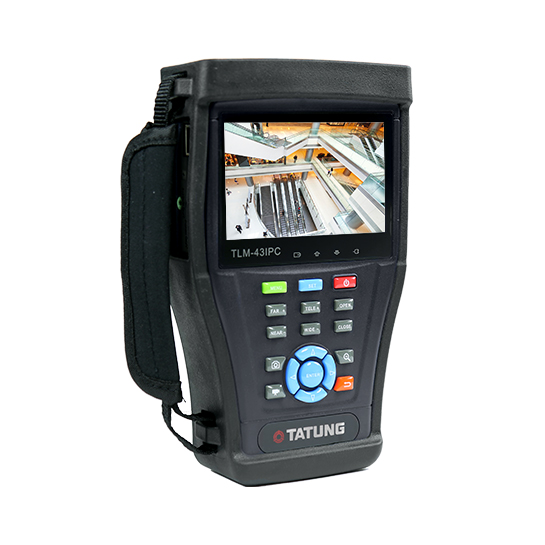

Tatung TLM-43IPC
![Tatung TLM-43IPC Tatung TLM-43IPC](/account/images/image.img?color=eb9128&text=333333&accent=d77128&compliment=fffebd&navigation=120403&heading=0f0f0f&title=0f0f0f&logo=030302&link=0a11cf&picture.image.url=%2Ffiles%2F1848031%2Fuploaded%2FTLM-43IPC.jpg&picture.width.max=208&picture.image.mask.apply=false&stage.width.max=520&cache=1662661476370) |
Click to enlarge image(s)
|
SPECIFICATIONS:
Screen Size: 4.3 Inch
Backlight System: OLED Touchscreen
Resolution: 800 x 480
Supported IP Cameras: ONVIF & ONVIF PTZ
SDI: 1 Channel SDI input (BNC Interface)
CVI: 1 Channel CVI input (BNC Interface)
TVI: 1 Channel TVI input (BNC Interface)
AHD: 1 Channel AHD input (BNC Interface)
Analog Video: 1 Channel BNC & 1 Channel BNC output
Audio: 1 Channel single input, 1 channel single output to headphones
PoE Power Output: 48V PoE power output, Max power 24W
12V/2A Power Output: Output DC 12V/2A power for camera
USB 5V Power Out: 5V 2A power output only, no data
External Power Supply: DC 12V (2A)
Battery: Built in 7.4V Lithium Polymer, 5000mAh
Dimensions: 8.36" x 5" x 2.07"
Weight: 1.86 lbs
Specifications subject to change without notice
Product Specification Sheet
